image 侦查和扫描 最近家里的电脑有时间打开了，就开始做下GOAD靶场实验，GOAD靶场的writeup先根据作者的流程走，后期学完可以做些自我理解及补充。 环境搭建参考之前的博客：https://lca.xlog.app/game-of-active-directoryGOAD-yu-huan-jing-da-jian 做实验前，vm 虚拟机打个快照 启动所有机器 vargant up 环境网络设置 ubuntu：承载了virtualbox的vm虚拟机ip段为：192.168.31.0/24段 virtualbox：GOAD靶场的的虚拟机ip段为192.168.56.1/0段 网络枚举 cme 安装cme sudo snap install crackmapexec cme smb扫描 crackmapexec smb 192.168.56.0/24 扫描结果包括有用的信息，获取了所有靶机的ip、名称和域信息 查找DC的ip 可以使用nslookup执行DNS查询从而列出DC的相关信息 设置/etc/hosts和kerberos 在linux环境中使用kerberos，需要进行一些设置 安装kerberos linux客户端 admin_server设置为meereen.essos.local krb5-user已经安装，或者需重新配置，可以使用dpkg-reconfigure或修改/etc/krb5.conf文件进行重新配置 kerberos设置完成后，可以尝试是否可以获"


調査とスキャン#

前書き#

最近、家のコンピュータを開く時間ができたので、GOAD ターゲット環境の実験を始めました。GOAD ターゲット環境の writeup は、まず著者のプロセスに従って進め、後で学習が終わったら自己理解や補足を行う予定です。

環境構築は以前のブログを参考にしました：https://lca.xlog.app/game-of-active-directoryGOAD-yu-huan-jing-da-jian

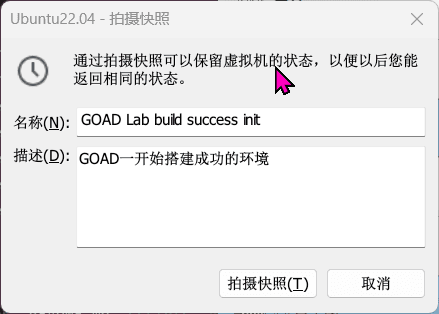

実験を行う前に、VM 仮想マシンのスナップショットを作成します。


すべてのマシンを起動します。

vargant up

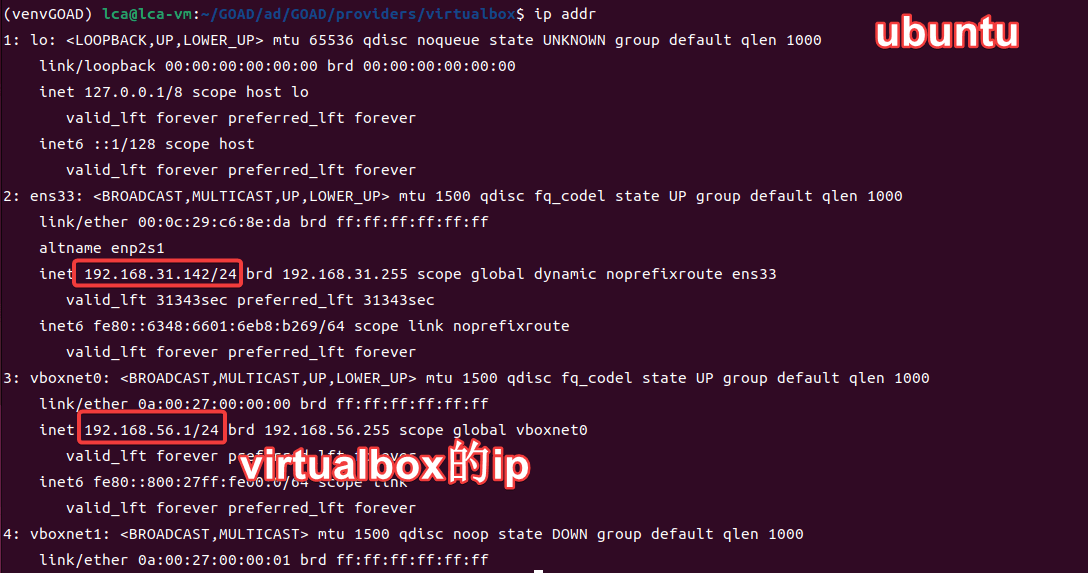

環境のネットワーク設定


ubuntu：VirtualBox の VM 仮想マシンの IP セグメントは：192.168.31.0/24
virtualbox：GOAD ターゲット環境の仮想マシンの IP セグメントは 192.168.56.1/0


したがって、環境全体のアクセスパスは次のようになります：

windows（ホスト - IP：192.168.31.151）-> ubuntu（VM 仮想マシン - IP：192.168.31.142）-> GOAD ターゲット環境（VirtualBox 仮想マシン - IP：192.168.56.1/24）

kali を攻撃マシンとして使用しようとしましたが、以前の記事のコメントにあったように、アクセスできなくなります。プロキシを使用してテストする必要がありますが、kali を起動するとメモリを消費します。私のホストマシンのメモリは 32G しかなく、もう一台 kali を起動すると、ターゲットマシンはメモリ不足でエラーが発生します。

ホストマシンの CPU も高騰します。


そのため、ubuntu 上で直接攻撃を行うことにしました。後で ubuntu マシンが攻撃の要件を満たさない場合は別の話です！

ネットワーク列挙#


cme

# cmeのインストール
sudo snap install crackmapexec

# cme smbスキャン
crackmapexec smb 192.168.56.0/24

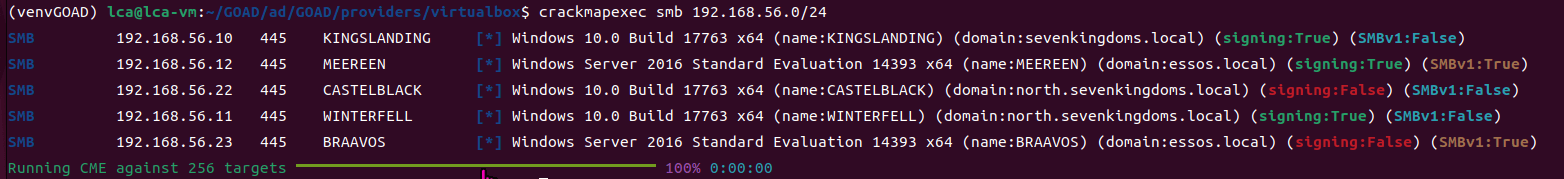

cme スキャンの結果は上の図の通りで、いくつかの有用な情報が返され、すべてのターゲットマシンの IP、名前、ドメイン情報を取得しました。

SMB         192.168.56.10   445    KINGSLANDING     [*] Windows 10.0 Build 17763 x64 (name:KINGSLANDING) (domain:sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.12   445    MEEREEN          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:MEEREEN) (domain:essos.local) (signing:True) (SMBv1:True)
SMB         192.168.56.22   445    CASTELBLACK      [*] Windows 10.0 Build 17763 x64 (name:CASTELBLACK) (domain:north.sevenkingdoms.local) (signing:False) (SMBv1:False)
SMB         192.168.56.11   445    WINTERFELL       [*] Windows 10.0 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.23   445    BRAAVOS          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:BRAAVOS) (domain:essos.local) (signing:False) (SMBv1:True)
  • north.sevenkingdoms.local（2 つの IP）
    • CASTELBLACK 192.168.56.22
    • WINTERFELL 192.168.56.11
  • sevenkingdoms.local（1 つの IP）
    • KINGSLANDING 192.168.56.10
  • essos.local（2 つの IP）
    • MEEREEN 192.168.56.12
    • BRAAVOS 192.168.56.23

トポロジー図からも明らかに、GOAD ターゲットマシンには 3 つのドメインがあります。また、cme のスキャン結果から、DC の署名はすべて True（signing）であり、実際の環境では NTLM リレーを防ぐために、すべての署名を True に設定する必要があります。

DC の IP を探す#


nslookup を使用して DNS クエリを実行し、DC に関連する情報をリストアップできます。

nslookup -type=srv _ldap._tcp.dc._msdcs.sevenkingdoms.local 192.168.56.10
  • nslookup：DNS クエリツール
    • -type=srv：SRV レコードを指定してクエリ
    • _ldap._tcp.dc._msdcs.sevenkingdoms.local：LDAP サービスを提供するドメインコントローラの関連情報を探すためのホスト名
    • クエリする DNS サーバーの IP アドレス

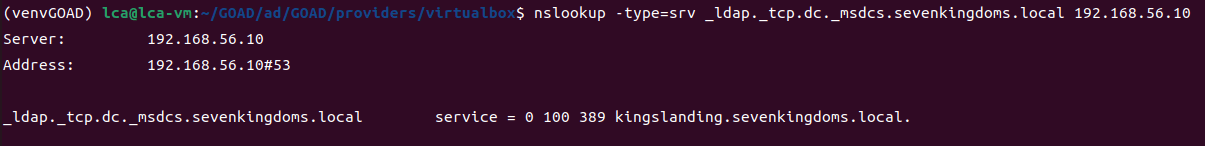

sevenkingdoms.local をクエリ

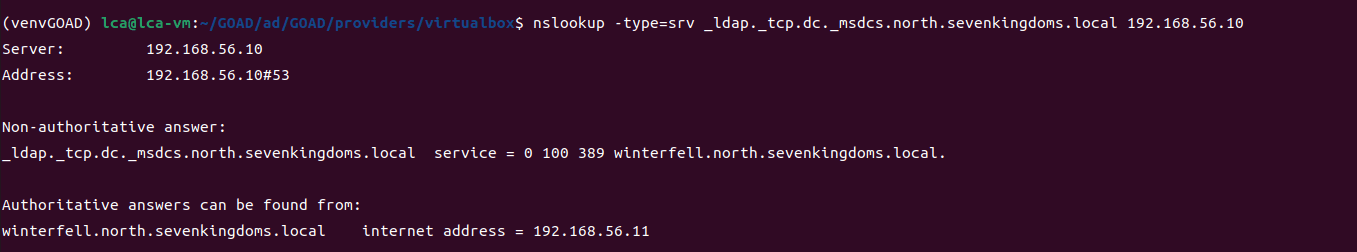

north.sevenkingdoms.local をクエリ

nslookup -type=srv _ldap._tcp.dc._msdcs.north.sevenkingdoms.local 192.168.56.10

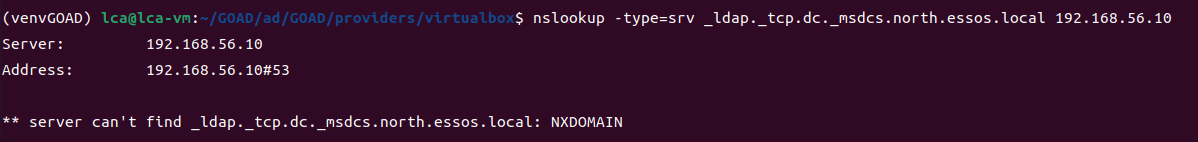

essos.local をクエリ

nslookup -type=srv _ldap._tcp.dc._msdcs.north.essos.local 192.168.56.10


/etc/hosts と kerberos の設定#

Linux 環境で kerberos を使用するには、いくつかの設定が必要です。

  1. /etc/hosts ファイルを構成して DNS を設定します。
# /etc/hosts
# GOAD
192.168.56.10   sevenkingdoms.local kingslanding.sevenkingdoms.local kingslanding
192.168.56.11   winterfell.north.sevenkingdoms.local north.sevenkingdoms.local winterfell
192.168.56.12   essos.local meereen.essos.local meereen
192.168.56.22   castelblack.north.sevenkingdoms.local castelblack
192.168.56.23   braavos.essos.local braavos


kerberos Linux クライアントをインストールします。

sudo apt install krb5-user

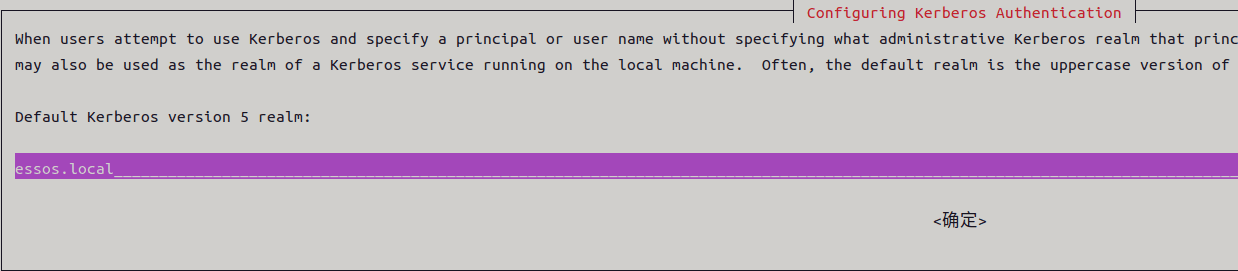

admin_server を meereen.essos.local に設定します。

krb5-user がすでにインストールされている場合、または再構成が必要な場合は、dpkg-reconfigure または /etc/krb5.conf ファイルを変更して再構成できます。内容は以下の通りです。

sudo gedit /etc/krb5.conf

[libdefaults]
	default_realm = essos.local
	kdc_timesync = 1
	ccache_type = 4
	forwardable = true
	proxiable = true
	fcc-mit-ticketflags = true

[realms]
	north.sevenkingdoms.local = {
		kdc = winterfell.north.sevenkingdoms.local
		admin_server = winterfell.north.sevenkingdoms.local
	}

	sevenkingdoms.local = {
		kdc = kingslanding.sevenkingdoms.local
		admin_server = kingslanding.sevenkingdoms.local
	}

	essos.local = {
		kdc = meereen.essos.local
		admin_server = meereen.essos.local
	}

kerberos の設定が完了したら、TGT チケットを取得できるかどうかを試してみます。

ダウンロード：

fortra/impacket

Impacket is a collection of Python classes for working with network protocols.

Python136063596
sudo pip3 install .
sudo python3 setup.py install

getTGT.py essos.local/khal.drogo:horse


export KRB5CCNAME=/home/lca/tools/impacket/examples/khal.drogo.ccache

python3 smbclient.py -k @braavos.essos.local
Impacket v0.12.0.dev1+20240502.235035.cb8467c3 - Copyright 2023 Fortra

Type help for list of commands
# shares
ADMIN$
all
C$
CertEnroll
IPC$
public
# use C$
# ls
drw-rw-rw-          0  Thu Feb 14 19:42:10 2019 $Recycle.Bin
-rw-rw-rw-     384322  Fri Feb 15 03:38:48 2019 bootmgr
-rw-rw-rw-          1  Fri Feb 15 03:38:48 2019 BOOTNXT
-rw-rw-rw-       1014  Thu Jan 18 00:00:49 2024 dns_log.txt
drw-rw-rw-          0  Wed Jan 17 07:27:46 2024 Documents and Settings
drw-rw-rw-          0  Wed Jan 17 22:04:13 2024 inetpub
-rw-rw-rw- 1476395008  Sun May  5 23:00:57 2024 pagefile.sys
drw-rw-rw-          0  Thu Feb 14 20:19:12 2019 PerfLogs
drw-rw-rw-          0  Wed Jan 17 23:07:58 2024 Program Files
drw-rw-rw-          0  Thu Jan 18 00:28:34 2024 Program Files (x86)
drw-rw-rw-          0  Thu Jan 18 00:17:10 2024 ProgramData
drw-rw-rw-          0  Tue Jan 16 23:28:06 2024 Recovery
drw-rw-rw-          0  Wed Jan 17 22:31:30 2024 setup
drw-rw-rw-          0  Thu Jan 18 00:32:16 2024 shares
drw-rw-rw-          0  Sun May  5 15:01:26 2024 System Volume Information
drw-rw-rw-          0  Wed Jan 17 21:53:12 2024 tmp
drw-rw-rw-          0  Wed Jan 17 23:57:19 2024 Users
drw-rw-rw-          0  Wed Jan 17 22:05:24 2024 Windows

このように、kerberos の設定が完了しました。

チケットを unset します。

unset KRB5CCNAME

他のいくつかのドメインをテストします。


export KRB5CCNAME=/home/lca/tools/impacket/examples/arya.stark.ccache

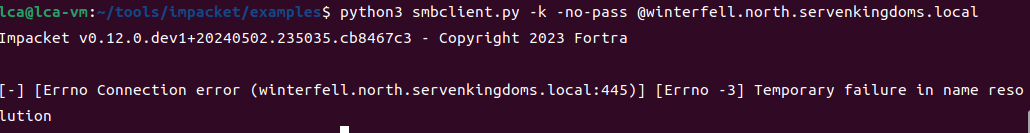

python3 smbclient.py -k -no-pass @winterfell.north.servenkingdoms.local
Impacket v0.12.0.dev1+20240502.235035.cb8467c3 - Copyright 2023 Fortra

[-] [Errno Connection error (winterfell.north.servenkingdoms.local:445)] [Errno -3] Temporary failure in name resolution


なぜ Kerberos が Winterfell で完全な FQDN を使用すると機能しないのかはわかりませんが、Winterfell を設定するだけで問題ありませんでした。


nmap スキャン#

nmap をインストールします。

sudo apt  install nmap

nmap を使用してスキャンを行い、次のパラメータを使用します。

nmap -Pn -p- -sC -sV -oA full_scan_goad 192.168.56.10-12,22-23

パラメータは次の通りです：

  • -Pn：ping スキャンを行わない
  • -p-：全ポートスキャン、1-65535
  • -sC：デフォルトの検出スクリプトを実行
  • -sV：指定されたポートでサービスのバージョン検出を実行
  • -oA：3 つの形式で結果を出力

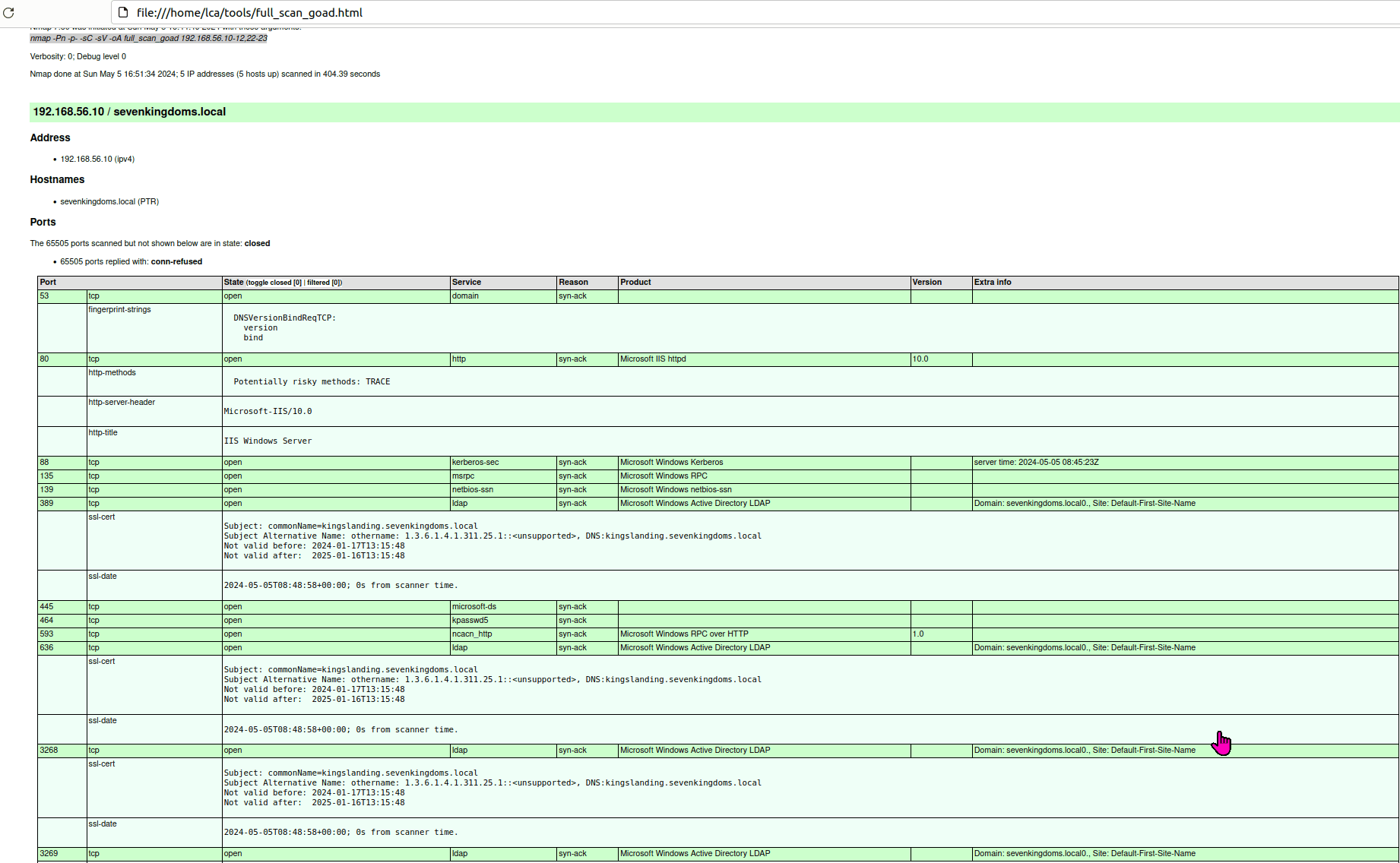

nmap スキャン結果は以下の通りです：

# Nmap 7.80 scan initiated Sun May  5 16:44:49 2024 as: nmap -Pn -p- -sC -sV -oA full_scan_goad 192.168.56.10-12,22-23
Nmap scan report for sevenkingdoms.local (192.168.56.10)
Host is up (0.0011s latency).
Not shown: 65505 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: IIS Windows Server
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:45:23Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-16T12:49:01
|_Not valid after:  2024-07-17T12:49:01
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T06:56:16
|_Not valid after:  2027-01-14T06:56:16
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49668/tcp open  msrpc         Microsoft Windows RPC
49670/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49671/tcp open  msrpc         Microsoft Windows RPC
49672/tcp open  msrpc         Microsoft Windows RPC
49674/tcp open  msrpc         Microsoft Windows RPC
49677/tcp open  msrpc         Microsoft Windows RPC
49684/tcp open  msrpc         Microsoft Windows RPC
49696/tcp open  msrpc         Microsoft Windows RPC
49711/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=66374728%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: KINGSLANDING; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: KINGSLANDING, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:62:c4:af (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:40
|_  start_date: N/A

Nmap scan report for winterfell.north.sevenkingdoms.local (192.168.56.11)
Host is up (0.00079s latency).
Not shown: 65506 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:45:28Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-16T12:59:52
|_Not valid after:  2024-07-17T12:59:52
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:00:27
|_Not valid after:  2027-01-14T07:00:27
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49671/tcp open  msrpc         Microsoft Windows RPC
49673/tcp open  msrpc         Microsoft Windows RPC
49676/tcp open  msrpc         Microsoft Windows RPC
49677/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49687/tcp open  msrpc         Microsoft Windows RPC
49694/tcp open  msrpc         Microsoft Windows RPC
49701/tcp open  msrpc         Microsoft Windows RPC
49739/tcp open  msrpc         Microsoft Windows RPC
54275/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=6637472E%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: WINTERFELL; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: WINTERFELL, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:73:1f:da (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:43
|_  start_date: N/A

Nmap scan report for essos.local (192.168.56.12)
Host is up (0.00043s latency).
Not shown: 65508 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:46:22Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
445/tcp   open  microsoft-ds  Microsoft Windows Server 2008 R2 - 2012 microsoft-ds (workgroup: ESSOS)
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=meereen.essos.local
| Not valid before: 2024-01-16T12:49:13
|_Not valid after:  2024-07-17T12:49:13
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:08:56
|_Not valid after:  2027-01-14T07:08:56
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
| tls-alpn:
|   h2
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49668/tcp open  msrpc         Microsoft Windows RPC
49669/tcp open  msrpc         Microsoft Windows RPC
49676/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49677/tcp open  msrpc         Microsoft Windows RPC
49681/tcp open  msrpc         Microsoft Windows RPC
49684/tcp open  msrpc         Microsoft Windows RPC
49690/tcp open  msrpc         Microsoft Windows RPC
49711/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=66374763%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: MEEREEN; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_nbstat: NetBIOS name: MEEREEN, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:c5:7e:aa (Oracle VirtualBox virtual NIC)
|_smb-os-discovery: ERROR: Script execution failed (use -d to debug)
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: required
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:42
|_  start_date: 2024-05-05T04:02:06

Nmap scan report for castelblack.north.sevenkingdoms.local (192.168.56.22)
Host is up (0.0022s latency).
Not shown: 65516 closed ports
PORT      STATE SERVICE       VERSION
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: Site doesn't have a title (text/html).
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds?
1433/tcp  open  ms-sql-s      Microsoft SQL Server  15.00.2000.00
| ms-sql-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|_  Product_Version: 10.0.17763
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:22:58
|_Not valid after:  2054-05-05T07:22:58
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|   Product_Version: 10.0.17763
|_  System_Time: 2024-05-05T08:48:42+00:00
| ssl-cert: Subject: commonName=castelblack.north.sevenkingdoms.local
| Not valid before: 2024-01-16T13:08:04
|_Not valid after:  2024-07-17T13:08:04
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:18:49
|_Not valid after:  2027-01-14T07:18:49
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49669/tcp open  msrpc         Microsoft Windows RPC
49690/tcp open  msrpc         Microsoft Windows RPC
49691/tcp open  msrpc         Microsoft Windows RPC
49695/tcp open  msrpc         Microsoft Windows RPC
49705/tcp open  msrpc         Microsoft Windows RPC
49865/tcp open  ms-sql-s      Microsoft SQL Server
| ms-sql-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|_  Product_Version: 10.0.17763
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:22:58
|_Not valid after:  2054-05-05T07:22:58
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port49865-TCP:V=7.80%I=7%D=5/5%Time=663747D6%P=x86_64-pc-linux-gnu%r(ms
SF:-sql-s,25,"\x04\x01\0%\0\0\x01\0\0\0\x15\0\x06\x01\0\x1b\0\x01\x02\0\x1
SF:c\0\x01\x03\0\x1d\0\0\xff\x0f\0\x07\xd0\0\0\0\0");
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| ms-sql-info:
|   192.168.56.22:1433:
|     Version:
|       name: Microsoft SQL Server
|       number: 15.00.2000.00
|       Product: Microsoft SQL Server
|_    TCP port: 1433
|_nbstat: NetBIOS name: CASTELBLACK, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:96:f0:ff (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-05-05T08:48:44
|_  start_date: N/A

Nmap scan report for braavos.essos.local (192.168.56.23)
Host is up (0.00073s latency).
Not shown: 65516 closed ports
PORT      STATE SERVICE       VERSION
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: IIS Windows Server
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds  Microsoft Windows Server 2008 R2 - 2012 microsoft-ds
1433/tcp  open  ms-sql-s      Microsoft SQL Server  15.00.2000.00
| ms-sql-ntlm-info:
|   Target_Name: ESSOS
|   NetBIOS_Domain_Name: ESSOS
|   NetBIOS_Computer_Name: BRAAVOS
|   DNS_Domain_Name: essos.local
|   DNS_Computer_Name: braavos.essos.local
|   DNS_Tree_Name: essos.local
|_  Product_Version: 10.0.14393
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:01:25
|_Not valid after:  2054-05-05T07:01:25
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=braavos.essos.local
| Not valid before: 2024-01-16T13:46:38
|_Not valid after:  2024-07-17T13:46:38
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:29:16
|_Not valid after:  2027-01-14T07:29:16
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
| tls-alpn:
|   h2
|_  http/1.1
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49670/tcp open  msrpc         Microsoft Windows RPC
49671/tcp open  msrpc         Microsoft Windows RPC
49693/tcp open  msrpc         Microsoft Windows RPC
49712/tcp open  msrpc         Microsoft Windows RPC
49724/tcp open  msrpc         Microsoft Windows RPC
49769/tcp open  msrpc         Microsoft Windows RPC
49773/tcp open  msrpc         Microsoft Windows RPC
49896/tcp open  ms-sql-s      Microsoft SQL Server
| ms-sql-ntlm-info:
|   Target_Name: ESSOS
|   NetBIOS_Domain_Name: ESSOS
|   NetBIOS_Computer_Name: BRAAVOS
|   DNS_Domain_Name: essos.local
|   DNS_Computer_Name: braavos.essos.local
|   DNS_Tree_Name: essos.local
|_  Product_Version: 10.0.14393
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:01:25
|_Not valid after:  2054-05-05T07:01:25
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port49896-TCP:V=7.80%I=7%D=5/5%Time=66374886%P=x86_64-pc-linux-gnu%r(ms
SF:-sql-s,25,"\x04\x01\0%\0\0\x01\0\0\0\x15\0\x06\x01\0\x1b\0\x01\x02\0\x1
SF:c\0\x01\x03\0\x1d\0\0\xff\x0f\0\x07\xd0\0\0\0\0");
Service Info: OSs: Windows, Windows Server 2008 R2 - 2012; CPE: cpe:/o:microsoft:windows

Host script results:
|_ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_nbstat: NetBIOS name: BRAAVOS, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:36:af:ca (Oracle VirtualBox virtual NIC)
|_smb-os-discovery: ERROR: Script execution failed (use -d to debug)
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: disabled (dangerous, but default)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-05-05T08:51:30
|_  start_date: 2024-05-05T07:01:07

ポストスキャンスクリプト結果：
| clock-skew:
|   0s:
|     192.168.56.10 (sevenkingdoms.local)
|     192.168.56.12 (essos.local)
|_    192.168.56.23 (braavos.essos.local)
サービス検出が実行されました。不正確な結果があれば、https://nmap.org/submit/ で報告してください。
# Nmapは2024年5月5日16:51:34に完了しました -- 5つのIPアドレス（5つのホストが起動中）を404.39秒でスキャンしました

nmap 出力の XML 形式を美化します。

sudo apt install xsltproc
xsltproc full_scan_goad.xml -o full_scan_goad.html
firefox full_scan_goad.html


参考#

https://mayfly277.github.io/posts/GOADv2-pwning_part1/

読み込み中...
文章は、創作者によって署名され、ブロックチェーンに安全に保存されています。
