Tools Needed

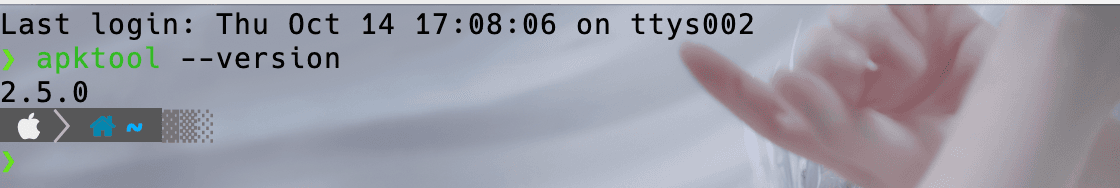

Check apktool version
❯ apktool --version
Install dex2jar on Mac
❯ brew install dex2jar

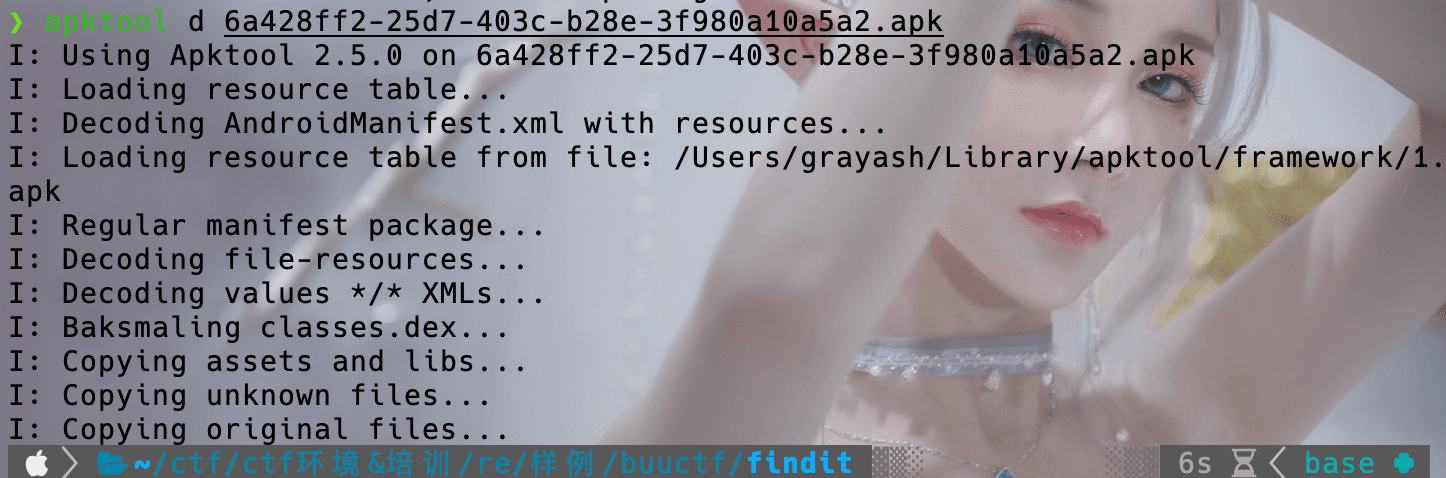

Step 1: Decompiling APK file with Apktool
❯ apktool d xxx.apk

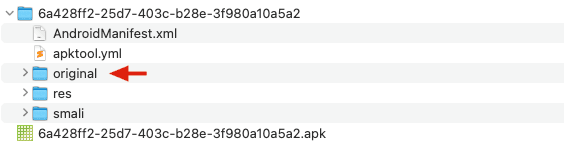

From apktool, you can view some source code files of the apk. Decompiling in this way only allows you to view smali source code.
Step 2: Decompiling dex to jar with dex2jar

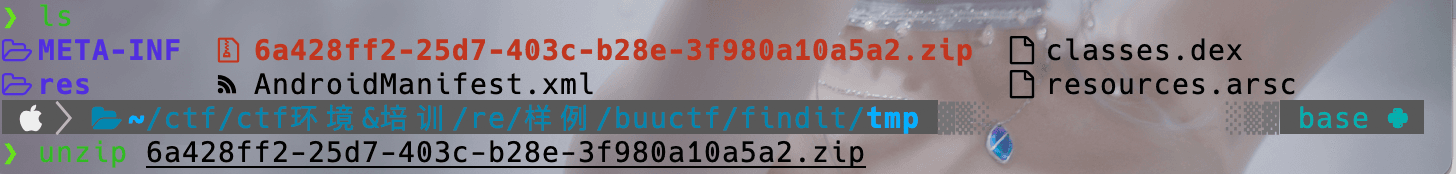

Change the file extension of the apk file to zip.
Extract the zip file to get the file with dex extension, then use dex2jar to convert the dex file to jar file.

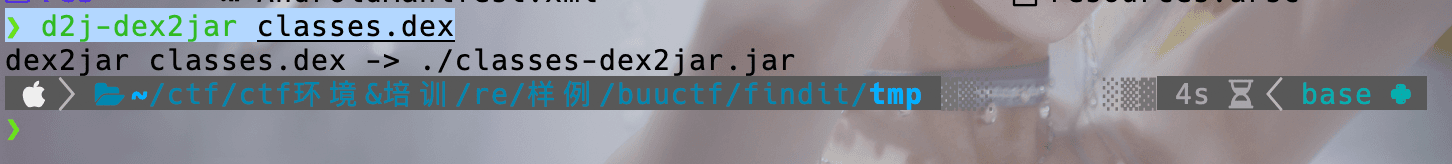

❯ d2j-dex2jar classes.dex
Alternatively, you can directly download dex2jar, then execute
sh d2j-dex2jar.sh classes.dex
If the compilation fails and shows a version issue, you need to modify the version in the dex file header.

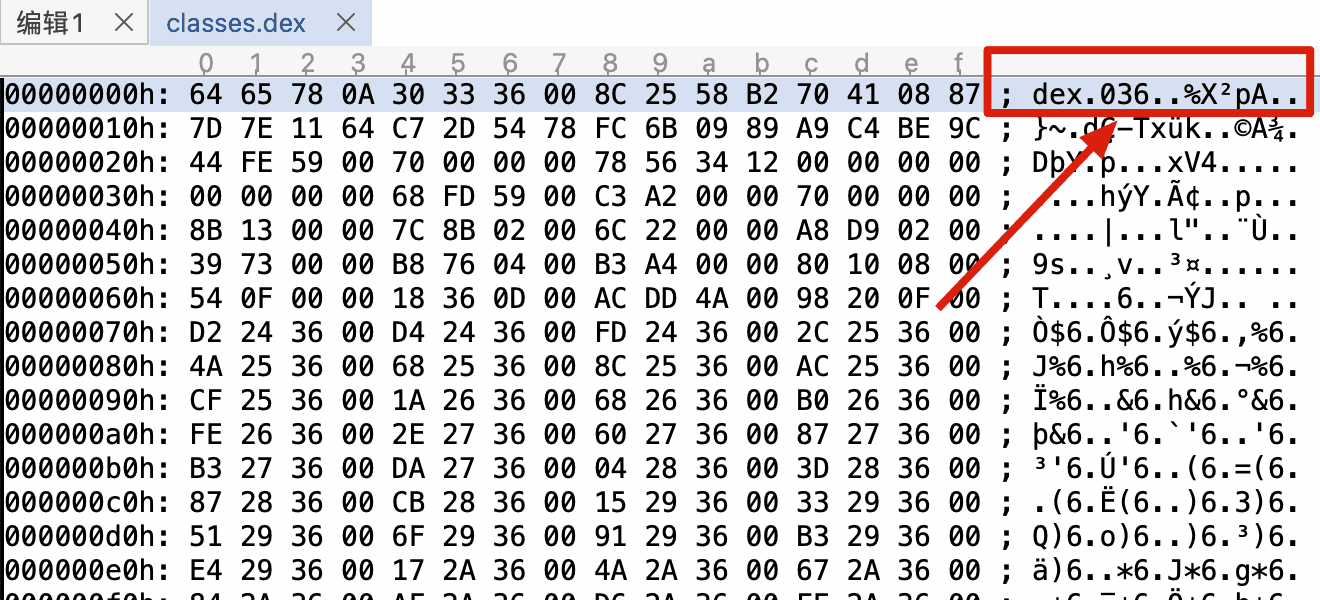

The magic field in the dex file header is an 8-byte fixed character array that represents the type and version of the dex file. The following are the magic field contents in the headers of different versions of dex files:
• Android 1.0 and 1.1 versions: dex 035
• Android 1.5 version: dex 035
• Android 1.6 version: dex 036
• Android 2.0 to 2.3.7 versions: dex 035
• Android 3.0 to 3.2.6 versions: dex 036
• Android 4.0 to 4.0.4 versions: dex 035
• Android 4.1 to 4.4.4 versions: dex 036
• Android 5.0 to 6.0.1 versions: dex 037
• Android 7.0 to 7.1.2 versions: dex 038
• Android 8.0 and above versions: dex 039
After obtaining the jar file, you can use jd-gui to view the jar code.

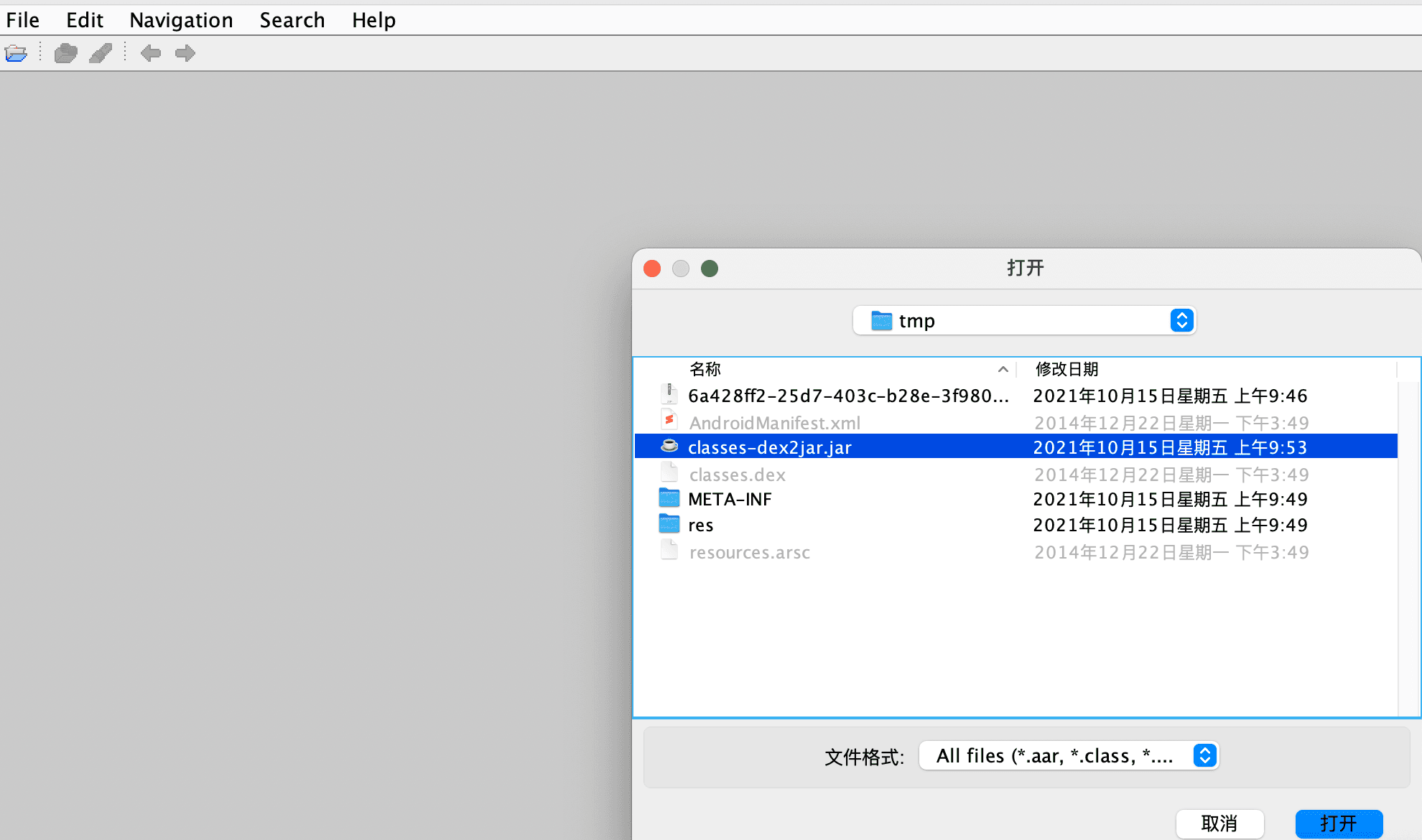

Step 3: Viewing jar code with JD-GUI
