mac arm version Android app packet capture environment setup

Jun 27, 2024#渗透测试 #工具502

AI Translation

This post is translated from Chinese into English through AI.View Original

AI-generated summary

To set up the Mumu emulator version 1.4.11, enable write system disk, root permissions, and install adb. Use the command "brew install android-platform-tools" to install adb and check the connection port. List emulator devices with "adb devices" and connect with "adb connect 127.0.0.1:16416". Disconnect with "adb disconnect 127.0.0.1:16416". Download Burp's certificate, convert it to pem format, rename it to $hash.0, and push it to the emulator using adb. Set the emulator's proxy IP to the Mac's IP address (172.20.10.2) for packet capturing. Follow the steps for elegant debugging of Android apps on an ARM MacBook.

After downloading the mumu emulator, perform the following settings:

mumu emulator version 1.4.11

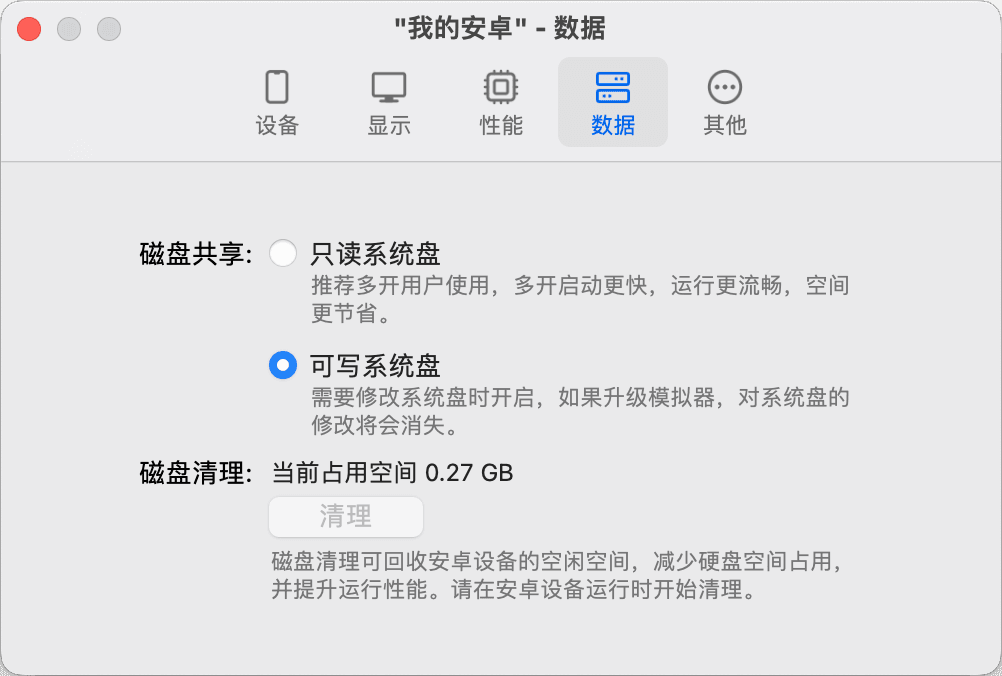

Enable writable system disk

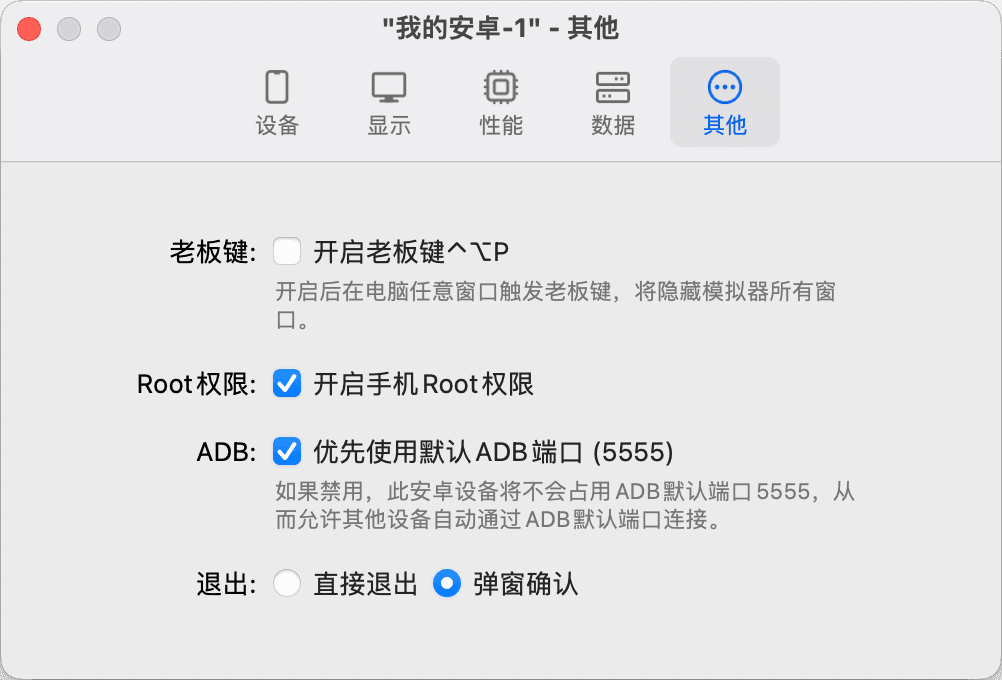

Enable root access

Install adb

brew install android-platform-tools

Check the adb connection port

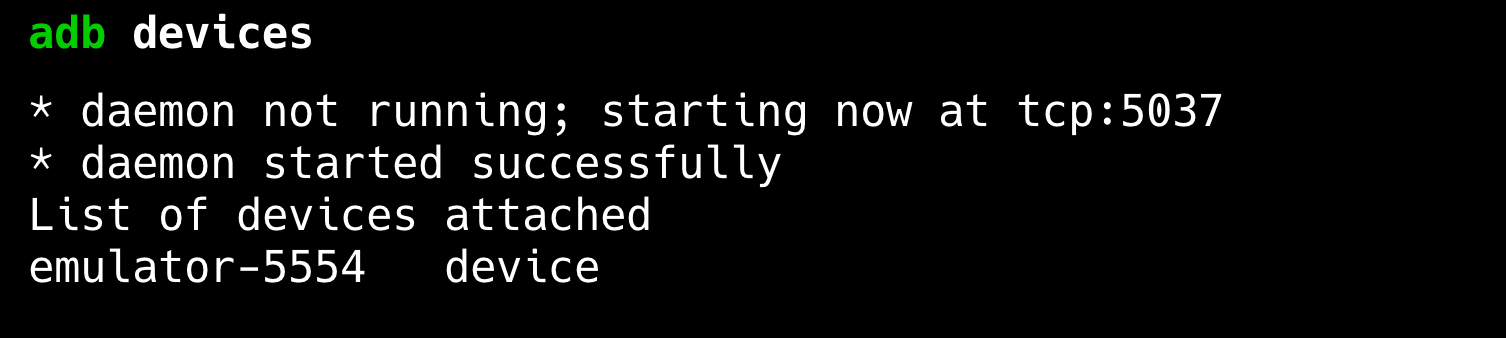

List emulator devices

adb devices

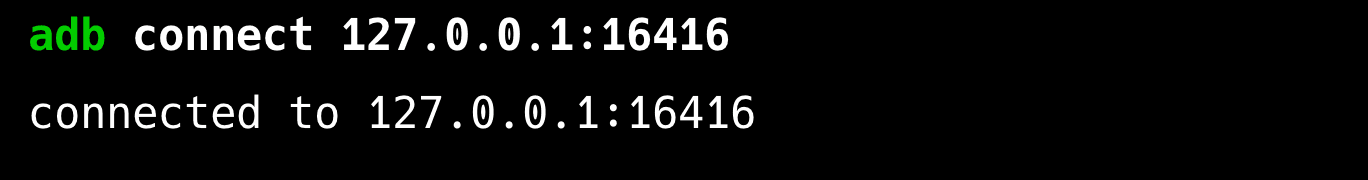

Connect

adb connect 127.0.0.1:16416

Disconnect

adb disconnect 127.0.0.1:16416

Download the burp certificate and convert the downloaded DER format certificate to PEM format, then convert it to $hash.0 format, and push it to the emulator using adb

openssl x509 -inform DER -in cacert.der -out cacert.pem

hash=$(openssl x509 -inform PEM -subject_hash_old -in cacert.pem | head -n 1)

new_hash="${hash}.0"

mv cacert.pem "$new_hash"

adb push "$new_hash" /system/etc/security/cacerts/

The IP address of the Mac is 172.20.10.2

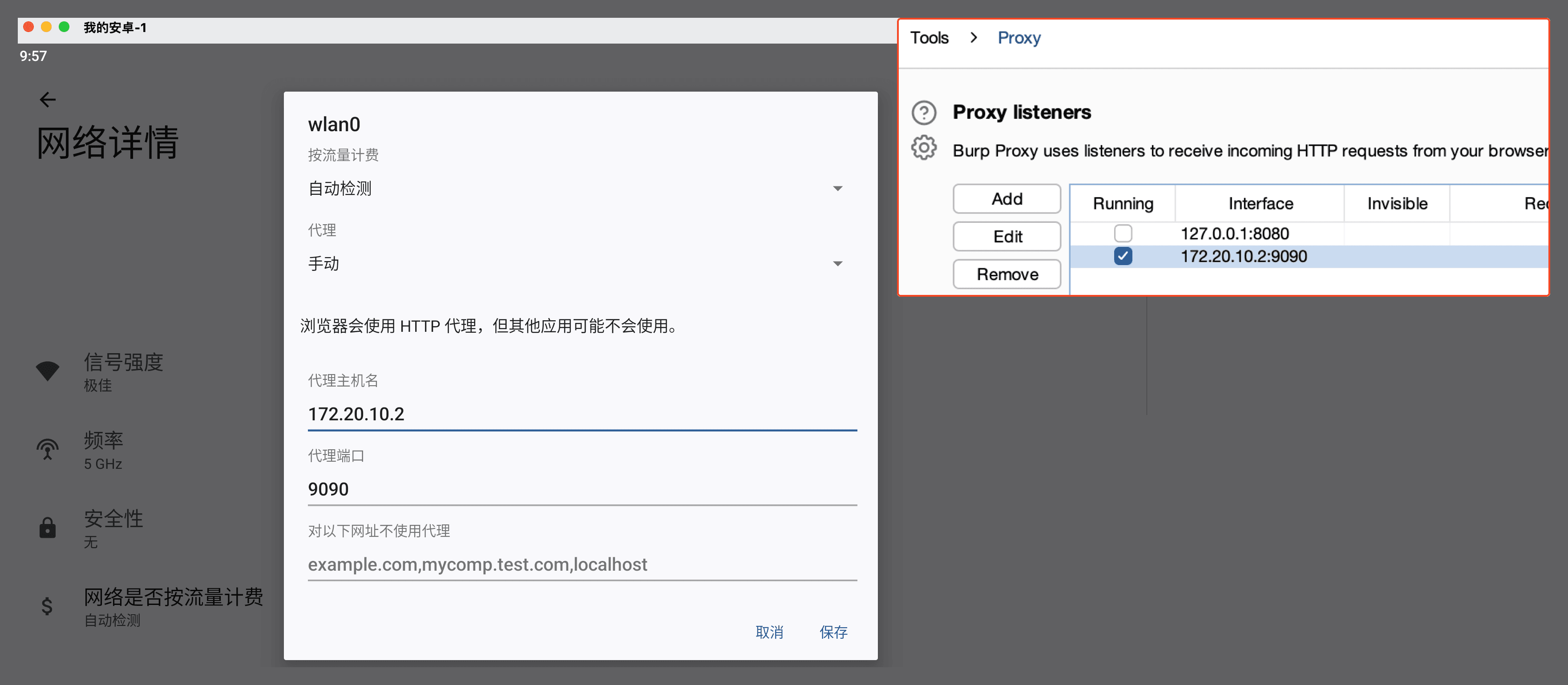

Next, set the emulator's proxy IP to the Mac's IP, and set Burp to use the Mac's IP.

Now you can start capturing packets normally.

Reference:

Elegant debugging of Android APP on ARM MacBook
